Citilog

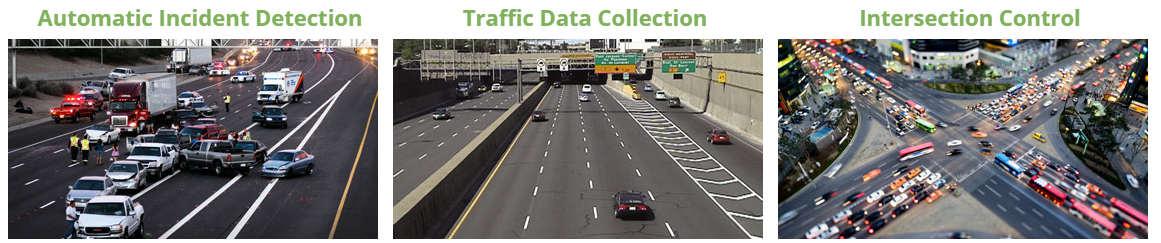

Citilog Media is a family of  products based on analysis designed for the transportation industry and provides Automatic Incident Detection (AID), Traffic Data Selection (TDC) and Intersection Management (IC). Citilog Media is designed and created by CITILOG.

MediaTunnel is an application for fixed cameras in the covered part of communication. It collects traffic data such as the number and type of vehicles, transit time, lane check and generates alarms based on automatic analyzes:

• - Vehicle stopped, loss of visibility, driving in the opposite direction, object left on the road, pedestrian detection, slow vehicle, counting and classification of vehicles, lane occupancy, average current speed, transit time
• - MediaRoad is an application for fixed cameras for communication in open space. Eliminates the effects of weather and time of year or time of day. Based on automatic analysis, it generates alarms:

Stopped vehicle, driving in the opposite direction, object left on the road, pedestrian detection, slow vehicle, counting and classification of vehicles, lane occupancy, average current speed, transit time

VisioPad + is an application for rotating (PTZ) cameras. It works with automatic calibration and does not require configuration during commissioning. Automatically detects real-time events of the type:

• - Stopped vehicle
• - In preposition - driving in the opposite direction, object left on the road, pedestrian detection, slow vehicle, counting and classification of vehicles, lane occupancy, average current speed, transit time

MediaTD is a system for collecting traffic data. It provides reliable traffic data, keeps statistics and supports future planning. It is a technology that does not require interference with the road - it replaces ground induction loops:

• - Slow vehicle, counting and classification of vehicles, lane occupancy, average current speed, transit time

​MediaCity is an application that provides real-time information on the presence of vehicles at intersections. The automations of the detected event are:

• - Stopped vehicle, driving in the opposite direction, object left on the road, pedestrian detection, slow vehicle, counting and classification of vehicles, lane occupancy, average current speed, transit time

MediaIntruder is a system for detecting the movement of people to secure the perimeter and detect unauthorized entry into the guarded area. Suitable for securing airports, tunnels, bridges and other buildings.

• -4D modeling (3D + time), trajectory specification, classification, multizone definition and correlation, adaptation to weather and light changes.

MediaVMS is fully compatible with Citilog video analysis software. The video management system combined with intelligent video analysis is a complete video surveillance and video detection solution for applications such as transport infrastructure, cities and public places.

Citilog XCAM is a family of video sensors compatible with Citilog SW. Video sensors are designed for Automatic Incident Detection (AID), Traffic Data Collection (TDC) and Intersection Control (IC). Citilog XCAM and XCAM-Edge are designed and developed by CITILOG. XCam-p and XCam-Edge-p detects vehicle passage as well as vehicle stop. Replaces the ground induction loop as an intersection controller sensor. It does not require construction intervention in the roadway. Replaces several ground loops. XCam-ng and XCam-Edge-ng function as a "p" and in addition measure the length of the column facing the junction, the occupancy and the remaining free space until the end of the marked sector. XCam-i can perform basic detection, ie stopped vehicle and provides information on compressed traffic. XCam-Edge - video detection algorithms for traffic management on highways, bridges, tunnels and more.

XCAM-Edge detects:

• - stopped vehicle
• - driving in the opposite direction
• - slowly vehicle
• - traffic jam
• - left object
• - pedestrian detection
• - smoke detection

XCAM-Edge traffic data collection:

• - vehicle counting
• - vehicle classification
• - avarage speed
• - availability
• - degree of traffic

XCam-td+ and XCam-Edge-td+ (Traffic Data) – video sensor for traffic data collection:

• - presence of vehicles
• - vehicle counting
• - vehicle classification (3 classes standard)
• - average speed – is. speed of the whole traffic flow
• - lane occupancy- information on traffic density
• - degree of traffic (standard 5 degrees)

Citilog SmartCams

CitilogSmartCams is a combination of Citilog SmartTraffic application software and AXIS IP camera with application platform. Software analysis that is directly installed in AXIS cameras with the ARTPEC-4 or ARTPEC-5 Application Platform. Citilog SmartTraffic software is designed for Automatic Incident Detection (AID), Traffic Data Collection (TDC) and Intersection Management (IC).

SmartTraffic-p –application for detecting the presence at intersections. It is designed to replace magnetic loops that are applied to the road.

• - replace magnetic loop
• - presence detection

SmartTraffic-ng – pplication for detecting the length of the queue at intersections. It provides several functionalities:

• -current queue length
• - a stopped vehicle in a specific lane or in the middle of an intersection
• - average waiting time at an intersection

SmartTraffic-i  – application for automatic detection of traffic incidents:

• - stopped for a period of time (typically 15 seconds), traffic jams

SmartTraffic-AID  –support for a wide range of video detection algorithms for traffic management on highways, bridges, tunnels and more.

Citilog SmartTraffic-AID detections are:

• - stopped vehicle
• - driving in the opposite direction
• - slow vehicle
• - traffic jam
• - left object
• - pedestrian detection
• - smoke detection

Citilog SmartTraffic-AID traffic data colecting:

• - vehicle counting
• - vehicle classification
• - average speed
• - availability
• - degree of traffic
